Introducing the Dingli AMWP11.5-8100

Is the Dingli AMWP11.5-8100 the right MEWP for Your Next Job?

Like the Star 10, the Dingli AMWP11.5-8100 mast lift has become a go-to for people working-at-height who need a compact boom with excellent manoeuvrability, especially as it has a working height of 11.2m (36.74ft). In this MEWP product showcase experts from Horizon Platforms explain what this boom offers, the work it is useful for, which industries can use it and why it is one of the most popular Dingli cherry pickers.

What is the Dingli AMWP11.5-8100 mast lift?

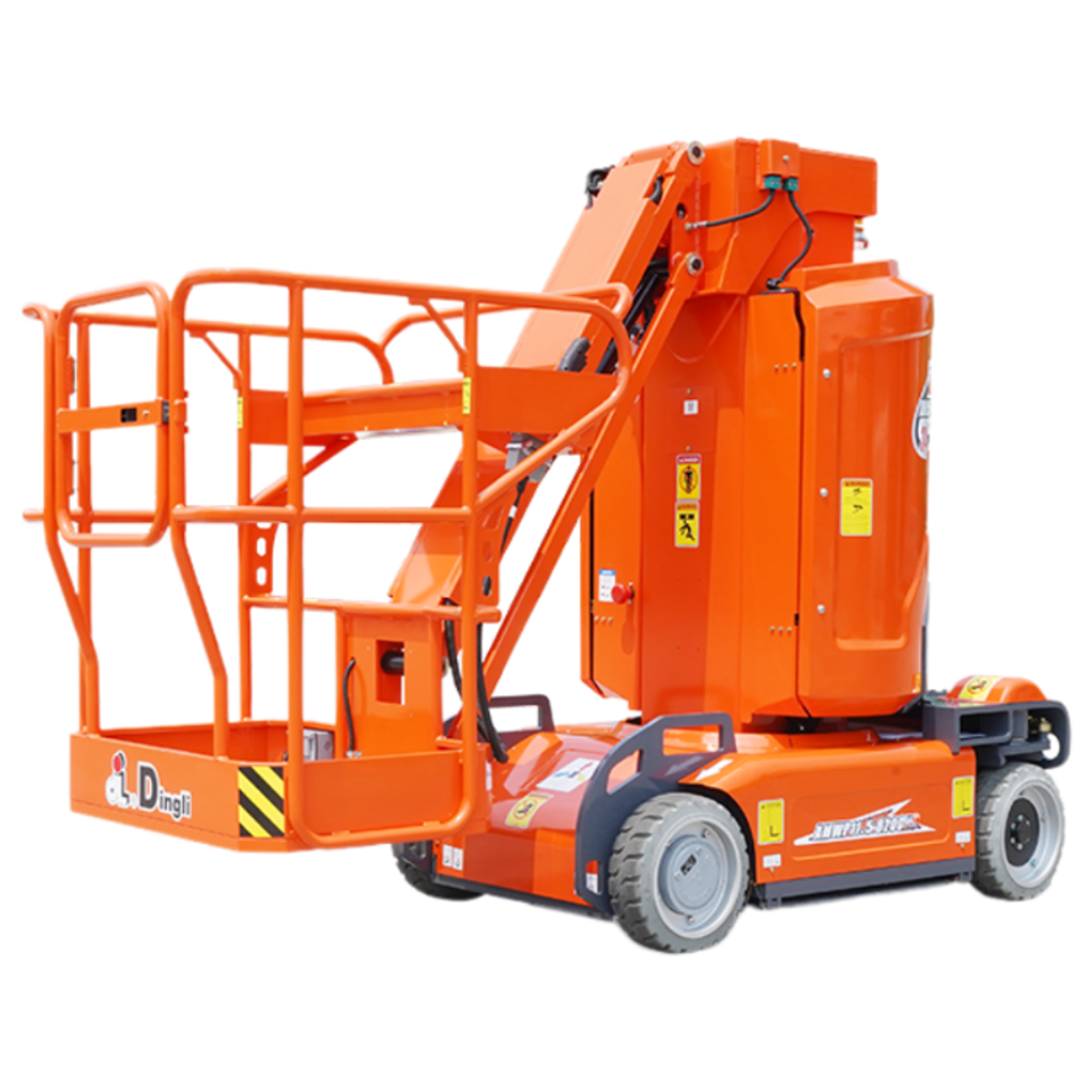

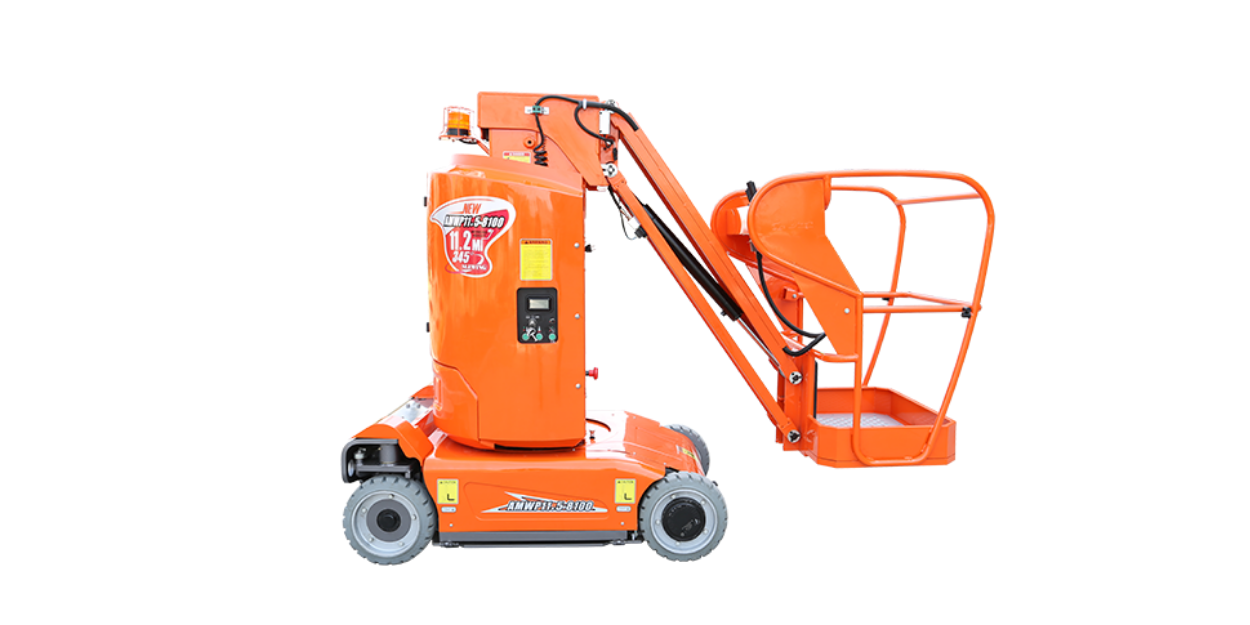

The Dingli AMWP11.5-8100 is a battery-powered self-propelled vertical mast boom lift designed for safe, compact vertical access in tight and narrow spaces. Its electric drive, flexible operation, and 3m (9.84ft) outreach makes it a great solution for maintenance, facility and warehouse access tasks at height. But, with a working height of 11.2m (36.74ft), this mast boom can reach higher than similar machines.

Key Specifications for the Dingli AMWP11.5-8100:

• Platform height: 9.2m (30.18ft)
• Working Height: 11.2m (36.74ft)
• Outreach: 3m (9.84ft)
• Machine Length: 2.72m (8.92ft)
• Machine Width: 1m (3.28ft)
• Safe Working Load: 200kg
• Environment: Indoor / Outdoor
• Tyres: Non-Marking

LINK: Dingli AMWP11.5-8100 full specification

Key Benefits and Advantages of the Dingli AMWP11.5-8100

The Dingli AMWP11.5-8100 is designed to deliver several advantages that make it attractive to users working in compact or sensitive environments. Some of the benefits include:

Compact footprint and flexible operation

With its width 1m (3.28ft), low stowed height, and lightweight structure allows movement through narrow doors, aisles, or corridors.

Maintenance free batteries

Allows regular use without the need for frequent maintenance or battery replacements. All while eliminating issues associated with lead-acid batteries which can reduce MEWP performance.

Greater working height than similar booms

The working height is 1.2m than equivalent machines like the Star10. Allowing for a greater reach in compact spaces.

Zero tail swing

This boom rotates 345° without tail overhang, improving safety and reducing collision risk in tight areas.

Vertical jib outreach

The 3 m (9.84ft) jib allows the platform to reach over obstacles or projects horizontally, useful for accessing around structural constraints.

Electric drive and quiet operation

Battery/electric operation produces zero emissions and low noise, ideal for indoor or quiet environments.

Drive-at-height function

Being able to drive while elevated saves repositioning time, boosting productivity.

These features make the Dingli AMWP11.5-8100 especially suited for environments where space is limited, noise/cleanliness is a concern, and precision is required.

Industry Applications for the Dingli AMWP11.5-8100

The Dingli AMWP11.5-8100 is a versatile access solution suited to a wide range of sectors and applications, both indoors and outdoors. It is particularly effective in environments where space is restricted or overhead access is limited.

Typical applications include:

• Warehousing and logistics: stock checks, ceiling lighting maintenance and access to racking within narrow aisles
• Retail and commercial maintenance: lighting, signage, HVAC (Heating, Ventilation, and Air Conditioning), ducting and cleaning tasks in shopping centres and retail units
• Facilities management: inspections, repair and maintenance work in large buildings such as stadiums, factories, museums and science parks
• Industrial plants and factories: maintenance, repairs and cleaning of production lines, utilities and overhead structures
• Electrical and mechanical works: installation and maintenance of cabling, lighting systems and ducting
• Events and exhibitions: rigging lighting, banners, signage and audio visual equipment
• Shopfitting and fit-out projects: pipework, electrical, refrigeration and installation work in offices, shops and supermarkets
• Signage installation and maintenance: ideal for work in narrow or restricted access areas

Equivalent MEWPs Available to Hire

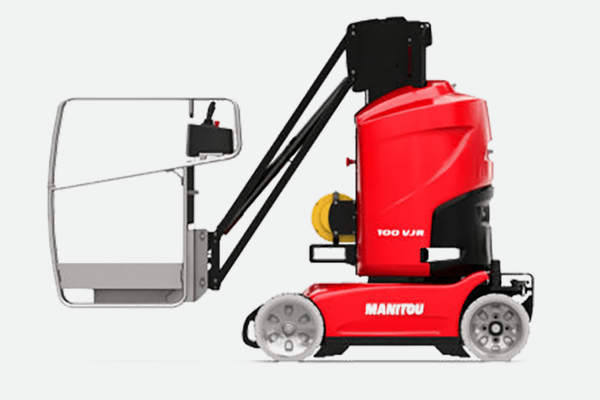

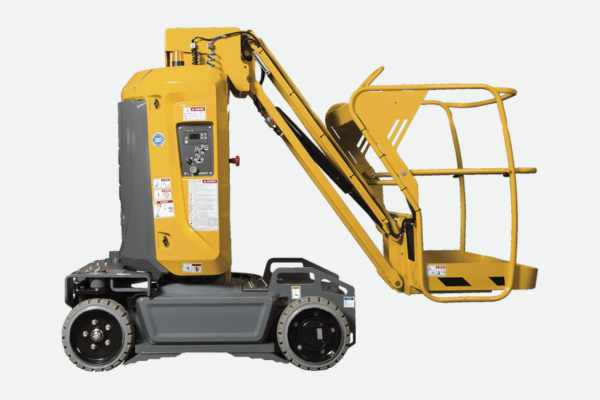

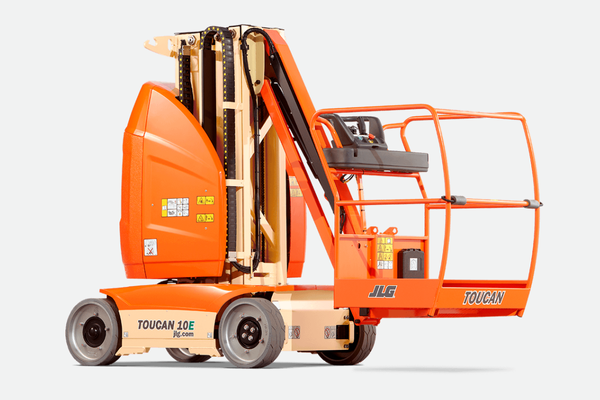

Here are some alternative vertical mast and compact boom lifts from other brands that may be useful for your work at height.

Tips for When Hiring a Dingli AMWP11.5-8100 or Equivalent MEWP

The Dingli AMWP11.5-8100 boom can help you do work at height safely and effectively, but is this mast lift always the right choice? Answering these questions will help you choose the right vertical mast boom for your work-at-height project.

• Do operators hold a IPAF licence to assure MEWP-use safety and efficiency
• Is the boom’s footprint right for the work environment?
• Do you need drive-at-height capability?
• What outreach and up and over height do you need?
• Are you working on flat surfaces or ones with a slope?
• What is the floor strength / surface tolerance?
• Do you need electric drive for zero emissions indoors?
• Are there charging points, transformers and leads on your site?
• Is zero tail swing a necessity?
• What maximum Safe Working Load is needed?
• Do I need a harness for this machine?

Need a Dingli AMWP11.5-8100 or Equivalent Mast Boom Lift?

When renting a Dingli AMWP11.5-8100 or equivalent mast boom, you need safety and reliability guarantees. With Horizon Platforms, you get a 98% reliability rating, 24/7 helpline, national same-day and next-day delivery and 8 commitments to support your objectives and schedules.

Contact our team or order online to rent a Dingli AMWP11.5-8100 or equivalent from Horizon Platforms.
