Dingli JCPT2212DC - 20m Electric Scissor Lift
Dingli JCPT2212DC - 20m Electric Scissor Lift
This machine or equivalent available for UK wide delivery
Applications & uses
72.2ft
Working heightIndoor / Outdoor
EnvironmentStraight Up Only
MovementIPAF: 3a
IPAF Rating- 25%
Up to 25%
Max gradient
Platform Height
Max Platform Height:65.6ft

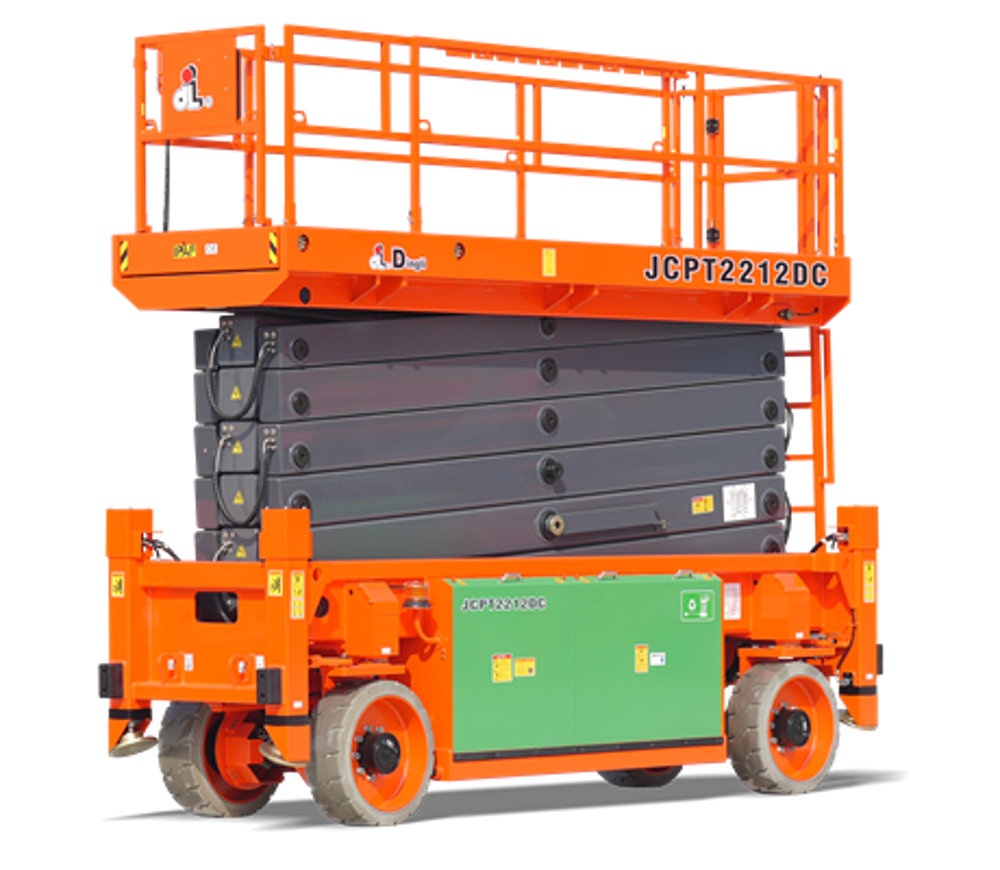

Dingli JCPT2212DC - 20m Electric Scissor Lift
The Dingli JCPT2212DC is a large 20m electric powered scissor lift designed for a wide range of tasks up to a working height of 22m. This scissor has a durable 48V/630Ah high-capacity battery pack, produces minimal noise and zero emissions and is environmentally friendly. Get fast UK delivery and out of hours support via our 98% trouble free hire service. You can call or email to rent this 20m scissor lift, or you can manage contracts online through HireHub.
Technical Specification
| Power Type | Battery |
|---|---|
| Extended Max Height | 65.6ft |
| Working Height | 72.2ft |
| Platform Length | 14.1ft |
| Platform Length Extended | 20ft |
| Platform Width | 2.36ft |
| Machine Length | 15.5ft |
| Machine Width | 4.1ft |
| Stowed Height | 15.5ft |
| Stowed Height Rails Down | 9.8ft |
| Max Load Capacity | 750kg |
| Weight | 1235kg |
| Wheelbase | 10.43ft |
| Gradeability | 25% |
| Environment | Indoor / Outdoor |
| Tyres | Non Marking |
